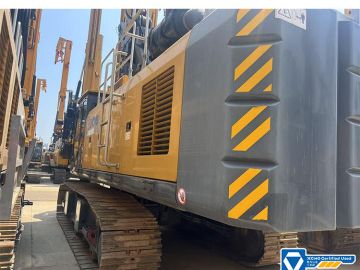

XCMG XR280E Used Mobile Drilling Rig Drilling Machine for Sale
Get Latest PriceModel No.:68618258
Category:Rotary Drilling Rig
Price:427786
Original Price:427786
Images:7
Payment Type:T/T, L/C
Incoterm:FOB, CIF
Min. Order:1 unit
Transportation:Ocean
Port:Shanghai port, Qingdao port, Lianyungang Port
Product Description
Model No.:68618258
Category:Rotary Drilling Rig
Delivery:Shop Delivery
Delivery Amount:0
Brief:XCMG XR280E Used Mobile Drilling Rig Drilling Machine for Sale | Brand: XCMG | Model: XR280E | Transport: Ocean | Port: Shanghai port,Qingdao port,Lianyungang port
XCMG XR280E Used Mobile Drilling Rig Drilling Machine for Sale
Optimally designed double swing arm luffing mechanism and optimized hinge point position take account of the construction stability and the transportation convenience at the same time.
It adopts H-type hydraulic retractable crawler chassis dedicated for rotary drilling rigs and large-diameter slewing bearing to ensure superior stability and convenient transportation.
The hydraulic system adopts load sensing technology with total power control and limit power control, making the hydraulic system more efficient and energy-saving, independent radiator system provides high heat dissipation efficiency.
The rotary drive owns normal mode special for soil layers and rock-entering mode special for rock formations, which improves construction efficiency, the autorotation of rotary drive can achieve continuous adjustments of speed in normal mode and rock-entering mode.
| Type | Unit | Parameter | |
| Max. drilling diameter | m | 2.5 | |
| Max. drilling depth | m | 94 | |
| Engine | Model | / | TAD1352VE |
| Power | kW | 315 | |
| Rotary drive | Max. output torque | kN.m | 300 |
| Rotary speed | r/min | 6-27 | |
| Crowd cylinder | Max. pull-down piston push | kN | 260 |
| Max. pull-down piston pull | kN | 330 | |
| Max. pull-down piston stroke | m | 6 | |
| Crowd winch | Max. pull-down piston push | kN | 330 |
| Max. pull-down piston pull | kN | 330 | |
| Max. pull-down piston stroke | m | 13 | |
| Main winch | Max. pulling force | kN | 330 |
| Max. speed | m/min | 75 | |
| Auxiliary winch | Max. pulling force | kN | 100 |
| Max. speed | m/min | 41 | |
| Mast inclination | Lateral/ forwards/ backwards | ° | ±4/5/15 |
| Undercarrige | Max. traveling speed | km/h | 1.5 |
| Max. grade ability | % | 35 | |
| Min. clearance | mm | 445 | |
| Track shoe width | mm | 800 | |
| Distance between tracks | mm | 3500-4800 | |
| Hydraulic system | Working pressure | MPa | 33 |
| Overall weight | Max. traveling speed of the overall unit | t | 106 |
| Dimension | Working condition Recommended Products XCMG XR240E Used Rotary Drilling Equipment for SaleUSD 182400 XCMG XR420E Used Rotary Drilling Machine PriceUSD 565000 XCMG XRS1050 Used Rotary Drilling Equipment for SaleUSD 211400 XCMG XR450E Used Rotary Drilling Equipment for SaleUSD 329300 XCMG XR360E Used Rotary Drilling Equipment for SaleUSD 256400 XCMG XR320D Used Rotary Well Drilling Rig PriceUSD 127500 XCMG XR220D Used Rotary Drilling Rig for SaleUSD 127500 XCMG XR460D Used Rotary Drilling Rig PriceUSD 196600FAQ■ 1.What's the warranty policy for XCMG reconditioned machines? The warranty policy does not cover the wearing parts and wearing parts. For engine, gearbox, hydraulic pump, distributor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly. ■ 2.How about the quality of your machine? The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professional institute. ■ 3.Are you the original manufacturer? Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of construction machineries. ■ 4.Can you satisfy my special requirement? As the manufacturer, XCMG will review the special requirement and recondition it as per request (if possible). ■ 5.What is acceptable payment terms? Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight. If any other questions, please feel free to contact us. PLEASE LEAVE US A MESSAGEWE WILL CONTACT YOU Hot Products XCMG XG1212HA-Li 12m Used Electric Mobile Scissor Lift for SaleModel No.: XG1212HA-Li USD 4949 Get Latest Price XCMG XG1212HD 12m Used Mobile Electric Scissors Lift TablesModel No.: XG1212HD USD 3025 Get Latest Price XCMG XDR70T Used Heavy Duty Dump Truck for SaleModel No.: XDR70T USD 58800 Get Latest Price XCMG XE700DF 70 Ton Used Excavator for SaleModel No.: XE700DF USD 161800 Get Latest Price | ||
