XCMG XR220D Used Rotary Drilling Rig for Sale
Get Latest PriceModel No.:68740161
Category:Rotary Drilling Rig
Price:127500
Original Price:127500
Images:5
Payment Type:T/T, L/C
Incoterm:FOB, CIF
Min. Order:1 unit
Transportation:Ocean
Port:Shanghai port, Qingdao port, Lianyungang Port
Product Description
Model No.:68740161
Category:Rotary Drilling Rig
Delivery:Shop Delivery
Delivery Amount:0
Brief:XCMG XR220D Used Rotary Drilling Rig for Sale | Brand: XCMG | Model: XR220D | Transport: Ocean | Port: Shanghai port,Qingdao port,Lianyungang port

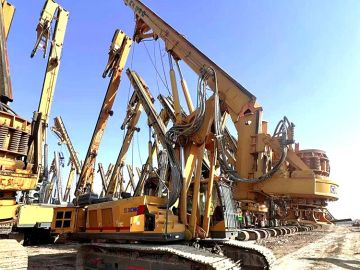

XCMG XR220D Used Rotary Drilling Rig for Sale
XCMG XR220D Rotary Drilling Rig widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings. The machine adapt single row rope for main winch to figure out the wear of steel rope and extend the life-span.
With infrared camera for observing main winch, manipulator can observe the state of steel rope at day and night in cab. With the hydraulic pressure system adopted threshold power control and positive flow control, the system acquired high efficiency and higher energy conservation. The patented parallelogram articulated structure actualizes a wider work range. The highly strengthened box-type steel structure design makes the mast of highly-rigidity and anticontored, therefore the drill accuracy is heightened.
With infrared camera for observing main winch, manipulator can observe the state of steel rope at day and night in cab. With the hydraulic pressure system adopted threshold power control and positive flow control, the system acquired high efficiency and higher energy conservation. The patented parallelogram articulated structure actualizes a wider work range. The highly strengthened box-type steel structure design makes the mast of highly-rigidity and anticontored, therefore the drill accuracy is heightened.
| Item | Unit | Parameter | |
| Max. drilling diameter | mm | 2000 | |
| Max. drilling depth | m | 67 | |
| Engine | Model | | QSL-325 |
| Rated power/speed | kW | 242/(2200r/min) | |
| Rotary drive | Max. torque | kN.m | 220 |
| Rotational speed | r/min | 7-25 | |
| Crowd cylinder | Max. Pushing force | kN | 200 |
| Max. Pulling force | kN | 200 | |
| Max. stroke | mm | 5000 | |
| Main winch | Max. pulling force | kN | 230 |
| Max. single-rope speed | m/min | 70 | |
| Diameter of the steel wire rope | mm | 30 | |
| Auxiliary winch | Max. pulling force | kN | 80 |
| Max. single-rope speed | m/min | 60 | |
| Diameter of the steel wire rope | mm | 20 | |
| Traveling | Max. traveling speed of the overall unit | km/h | 1.5 |
| Max. climbable gradient of the overall unit | % | 35 | |
| Hydraulic system | Working pressure | MPa | 35 |
| Rotary table slewing angle | ° | 360 | |
