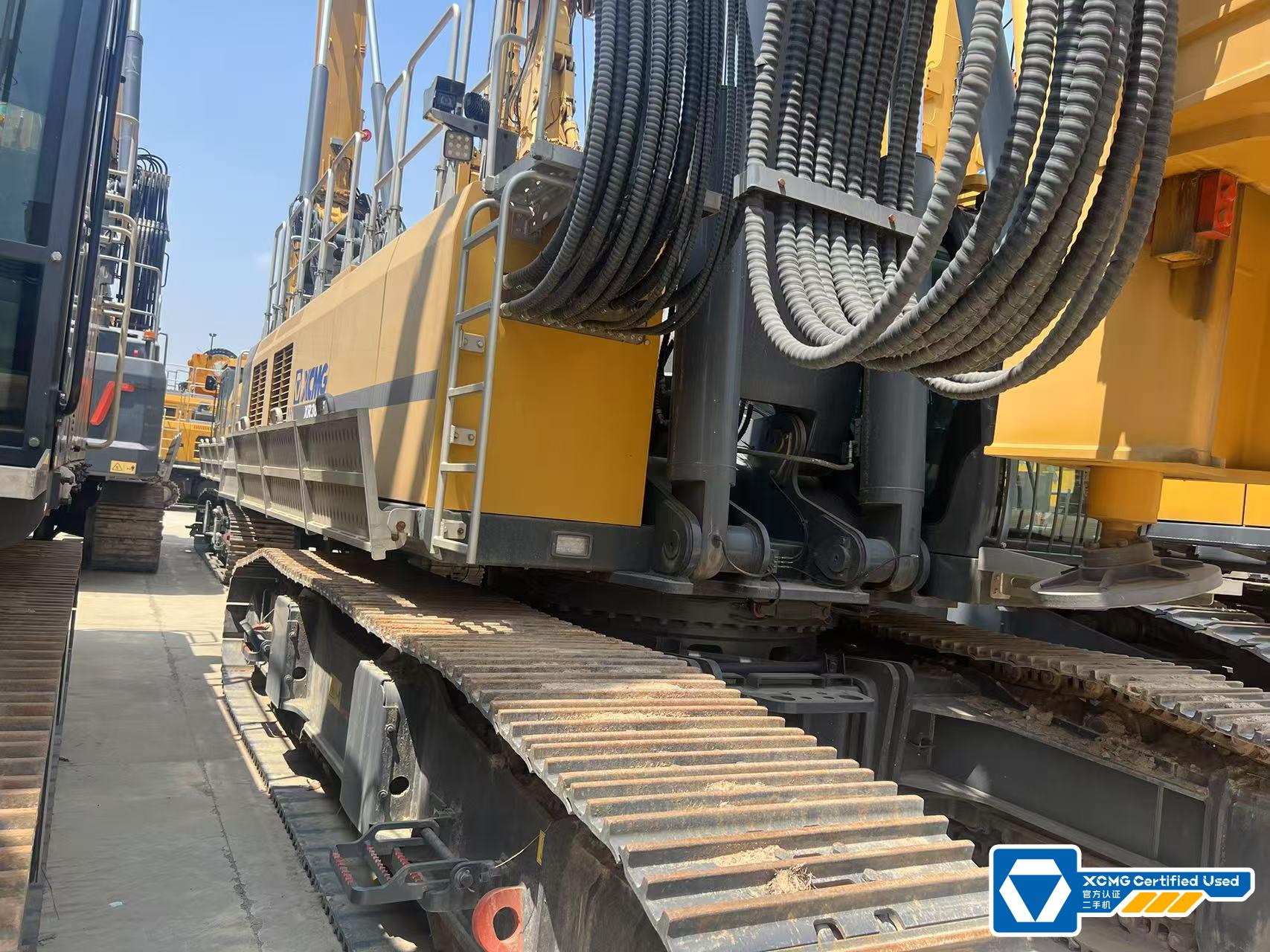

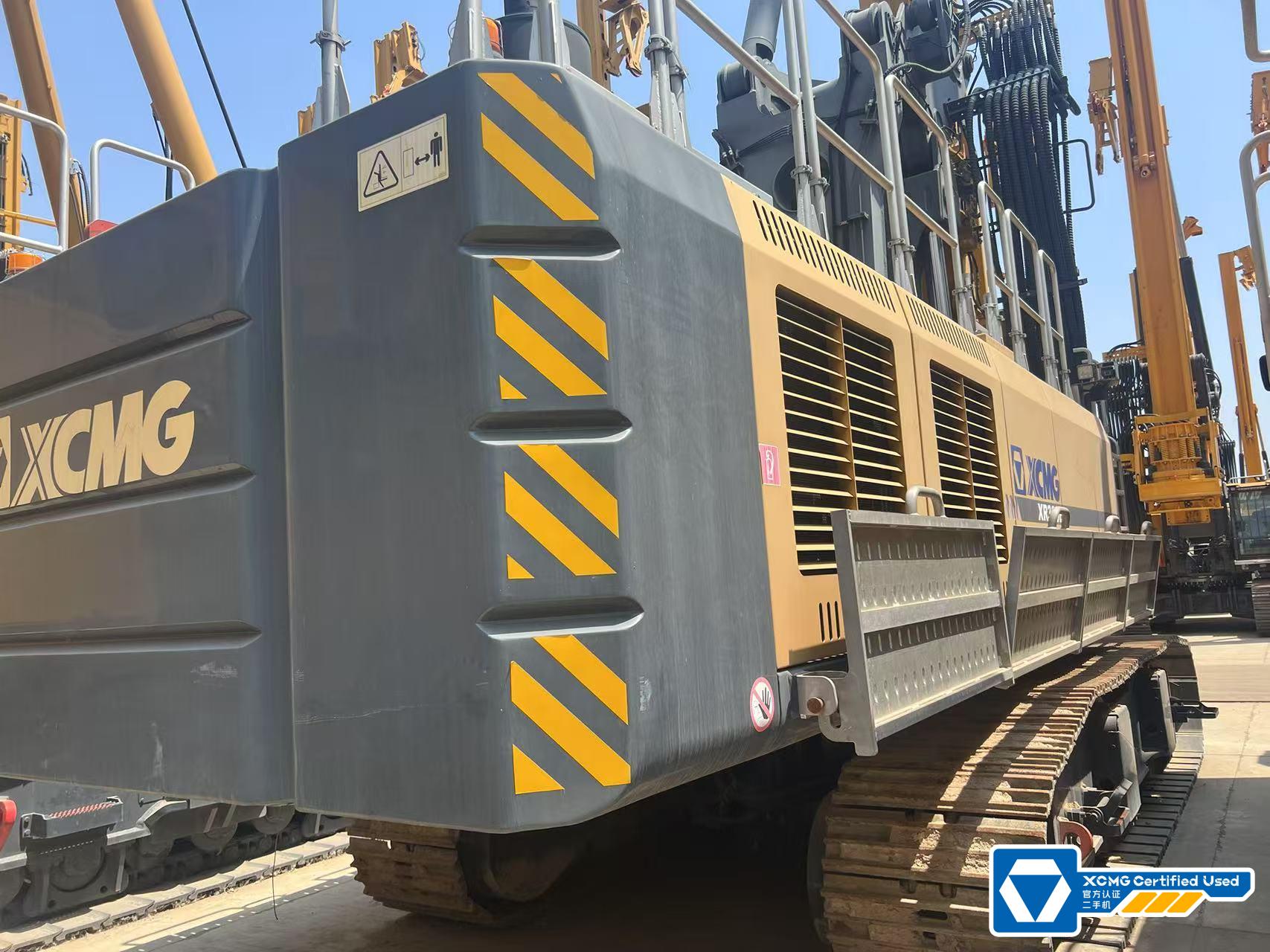

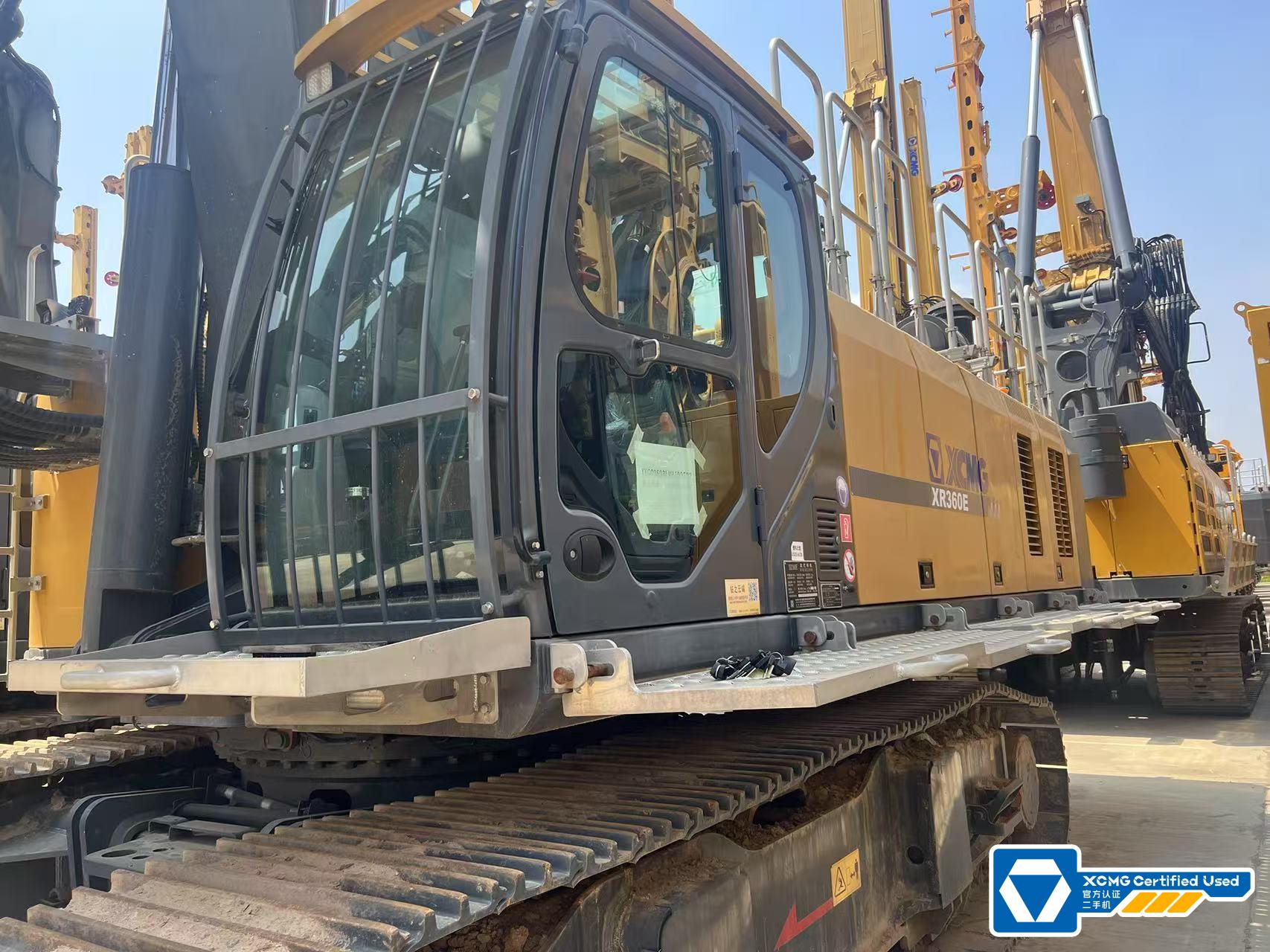

XCMG Used Rotary Drills XR360E Used Rotary Drilling Rigs for Sale

XCMG Used Rotary Drills XR360E Used Rotary Drilling Rigs for Sale

Name: XCMG Used Rotary Drills XR360E Used Rotary Drilling Rigs for Sale
Brand: XCMG
SKU: 68622577
Price: 540786.00 USD
Availability: InStock

Get Latest Price

Model No.:68622577

Category:Rotary Drilling Rig

Price:540786

Original Price:540786

Images:7

Payment Type:T/T, L/C

Incoterm:FOB, CIF

Min. Order:1 unit

Transportation:Ocean

Port:Shanghai port, Qingdao port, Lianyungang Port

Product Description

Model No.:68622577

Category:Rotary Drilling Rig

Delivery:Shop Delivery

Delivery Amount:0

Brief:XCMG Used Rotary Drills XR360E Used Rotary Drilling Rigs for Sale | Brand: XCMG | Model: XR360E | Transport: Ocean | Port: Shanghai port,Qingdao port,Lianyungang port

XCMG Used Rotary Drills XR360E Used Rotary Drilling Rigs for Sale

It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary

stability and transport convenience.

It adopts the electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.

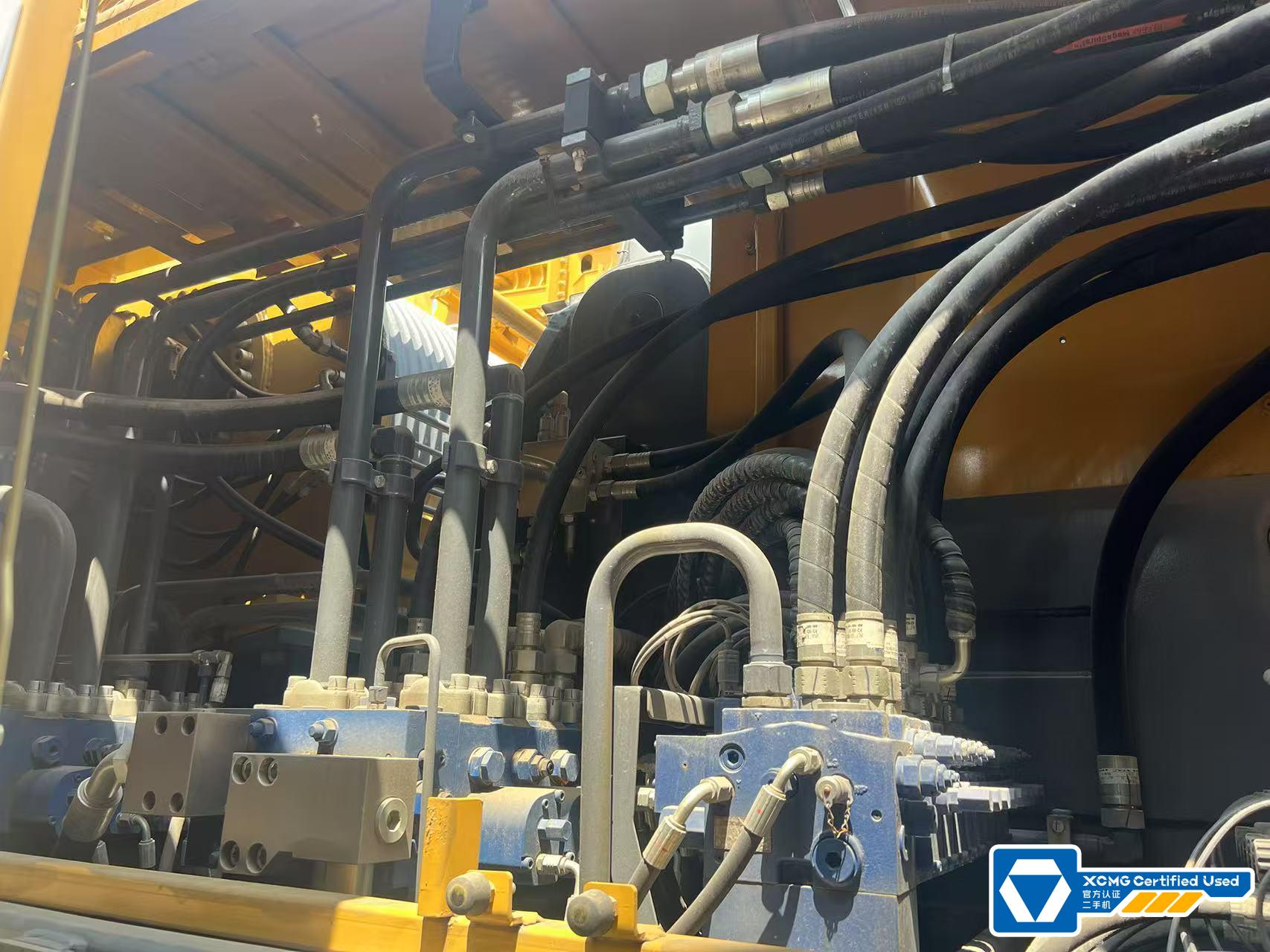

With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation.

Description		Unit	XR360E
Max. drilling diameter		mm	2800
Max. drilling depth		m	103
Allowable luffing scope (from center of drill rod to slewing center)		mm
Drilling rig dimension in working condition (L × W × H)		mm	10870×4900×25820
Drilling rig dimension in transport condition (L × W × H)		mm	20650×3500×3845
Weight of overall unit (standard configuration, excluding drilling tool)		t	115
Engine	Model		TD1353VE
Engine	Rated power/speed	kW	345/(2100r/min)
Max. working pressure of hydraulic system		Mpa	33
Rotary drive	Max. torque	kN•m	360
Rotary drive	Rotational speed	r/min	6~27
Crowd cylinder	Max. Pushing force	kN	300
	Max. Pulling force	kN	350
	Max.stroke	mm	6000
Crowd winch	Max. Pushing force	kN	100
	Max. Pulling force	kN
	Max.stroke	mm
Main winch	Max.pulling force	kN	370
	Max. single-rope speed	m/min	60
	Diameter of the steel wire rope	mm
Rotary table slewing angle		°
Crawler	Width of crawler plate	mm	800
	External width of crawler (min.-max.)	mm	3500~4900
	Center distance between two longitudinal wheels of crawler	mm
	Average ground pressure	kPa

OUR PRODUCTS

Used Hoisting Machinery

Used Excavator

Used Loader

Used Mining Machinery

FAQ

■ 1.What's the warranty policy for XCMG reconditioned machines?

The warranty policy does not cover the wearing parts and wearing parts. For engine, gearbox, hydraulic pump, distributor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.

■ 2.How about the quality of your machine?

The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professional institute.

■ 3.Are you the original manufacturer?

Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of construction machineries.

■ 4.Can you satisfy my special requirement?

As the manufacturer, XCMG will review the special requirement and recondition it as per request (if possible).

■ 5.What is acceptable payment terms?

Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight. If any other questions, please feel free to contact us.
