XCMG Used Rotary Drilling Machine XR400D Hydraulic Rotary Drilling for Sale

XCMG Used Rotary Drilling Machine XR400D Hydraulic Rotary Drilling for Sale

Name: XCMG Used Rotary Drilling Machine XR400D Hydraulic Rotary Drilling for Sale
Brand: XCMG
SKU: 68623277
Price: 323632.00 USD
Availability: InStock

Get Latest Price

Model No.:68623277

Category:Rotary Drilling Rig

Price:323632

Original Price:323632

Images:7

Payment Type:T/T, L/C

Incoterm:FOB, CIF

Min. Order:1 unit

Transportation:Ocean

Port:Shanghai port, Qingdao port, Lianyungang Port

Product Description

Model No.:68623277

Category:Rotary Drilling Rig

Delivery:Shop Delivery

Delivery Amount:0

Brief:XCMG Used Rotary Drilling Machine XR400D Hydraulic Rotary Drilling for Sale | Brand: XCMG | Model: XR400D | Transport: Ocean | Port: Shanghai port,Qingdao port,Lianyungang port

XCMG Used Rotary Drilling Machine XR400D Hydraulic Rotary Drilling for Sale

It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary

stability and transport convenience.

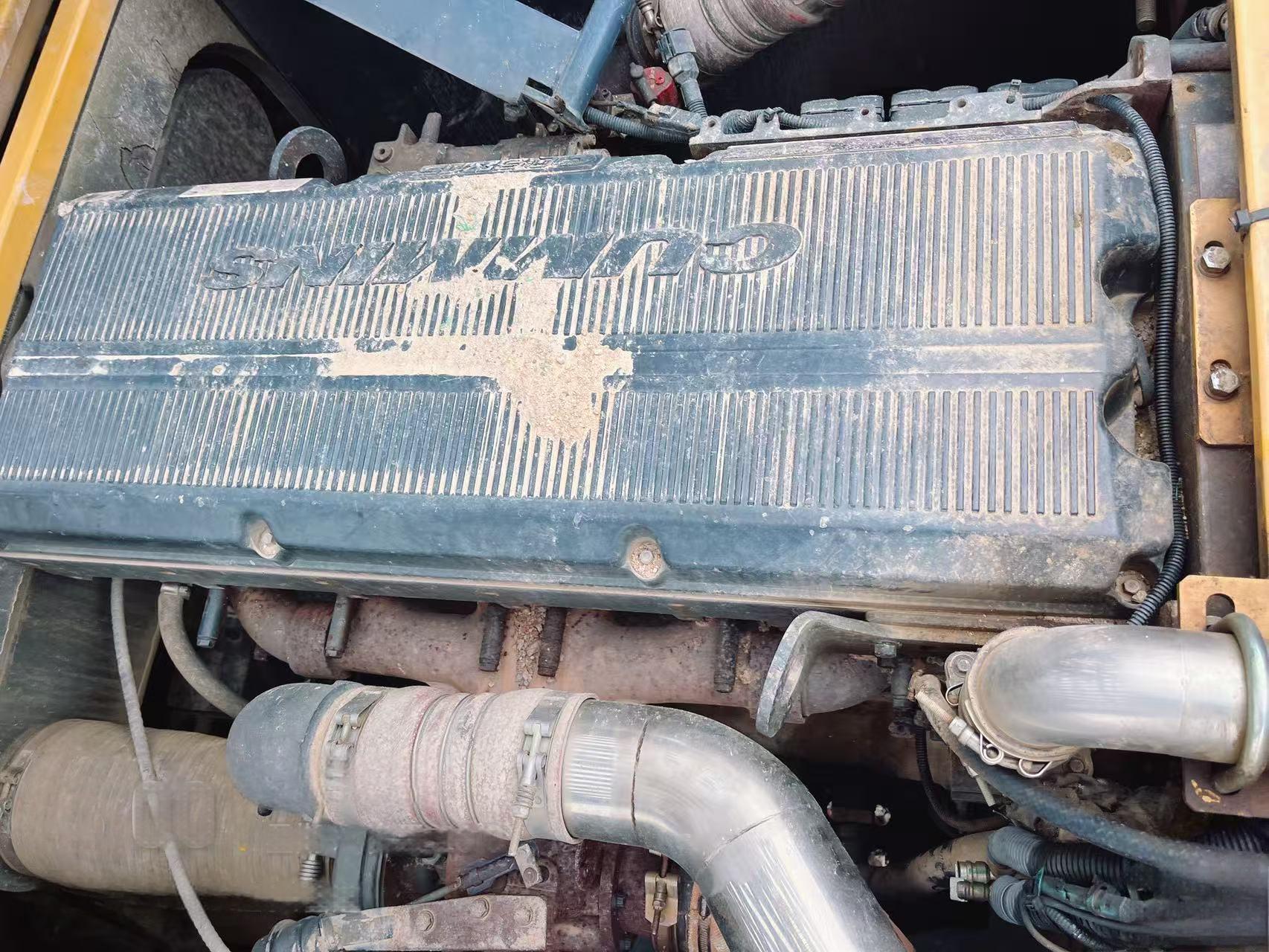

It adopts the electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.

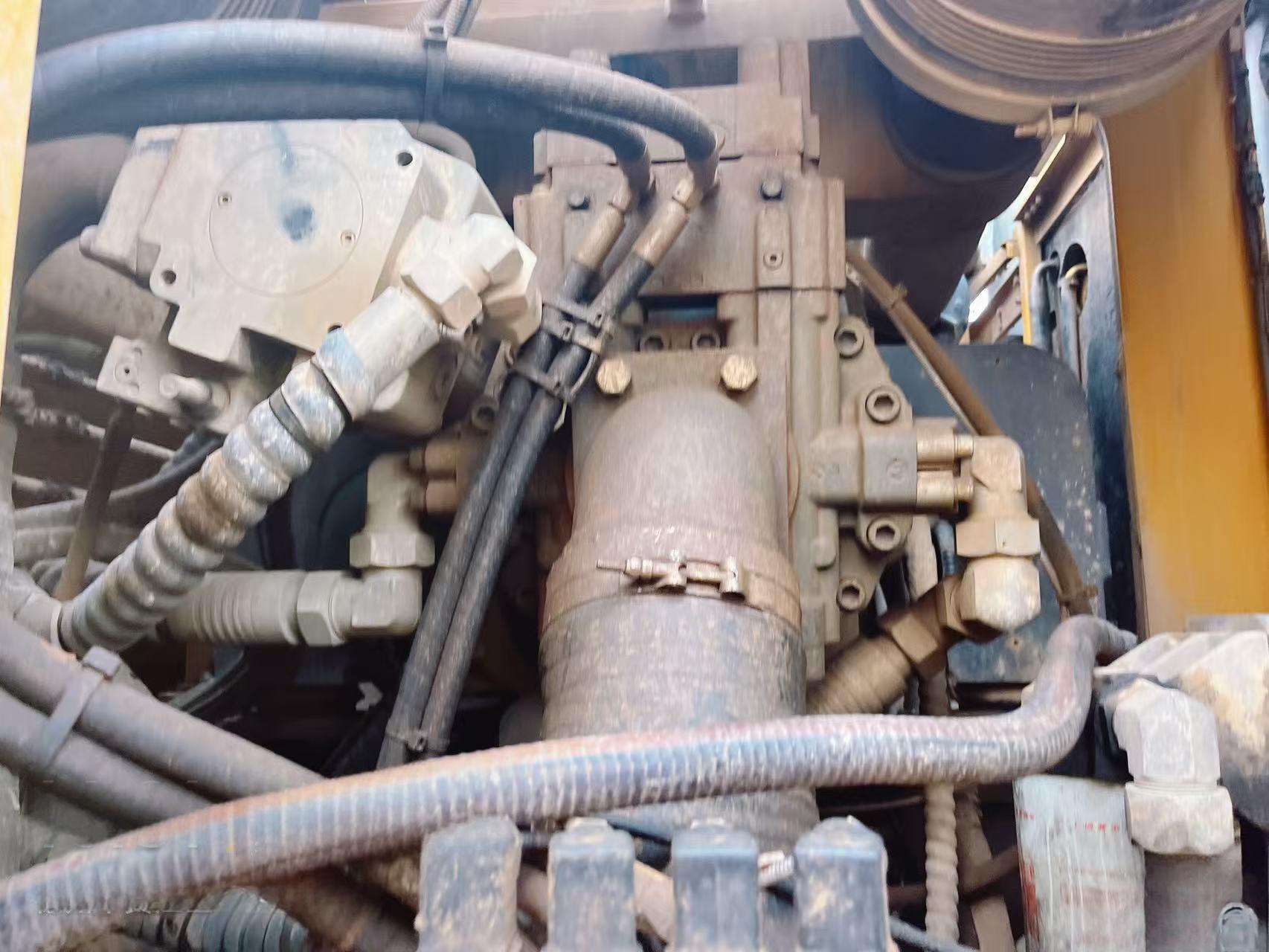

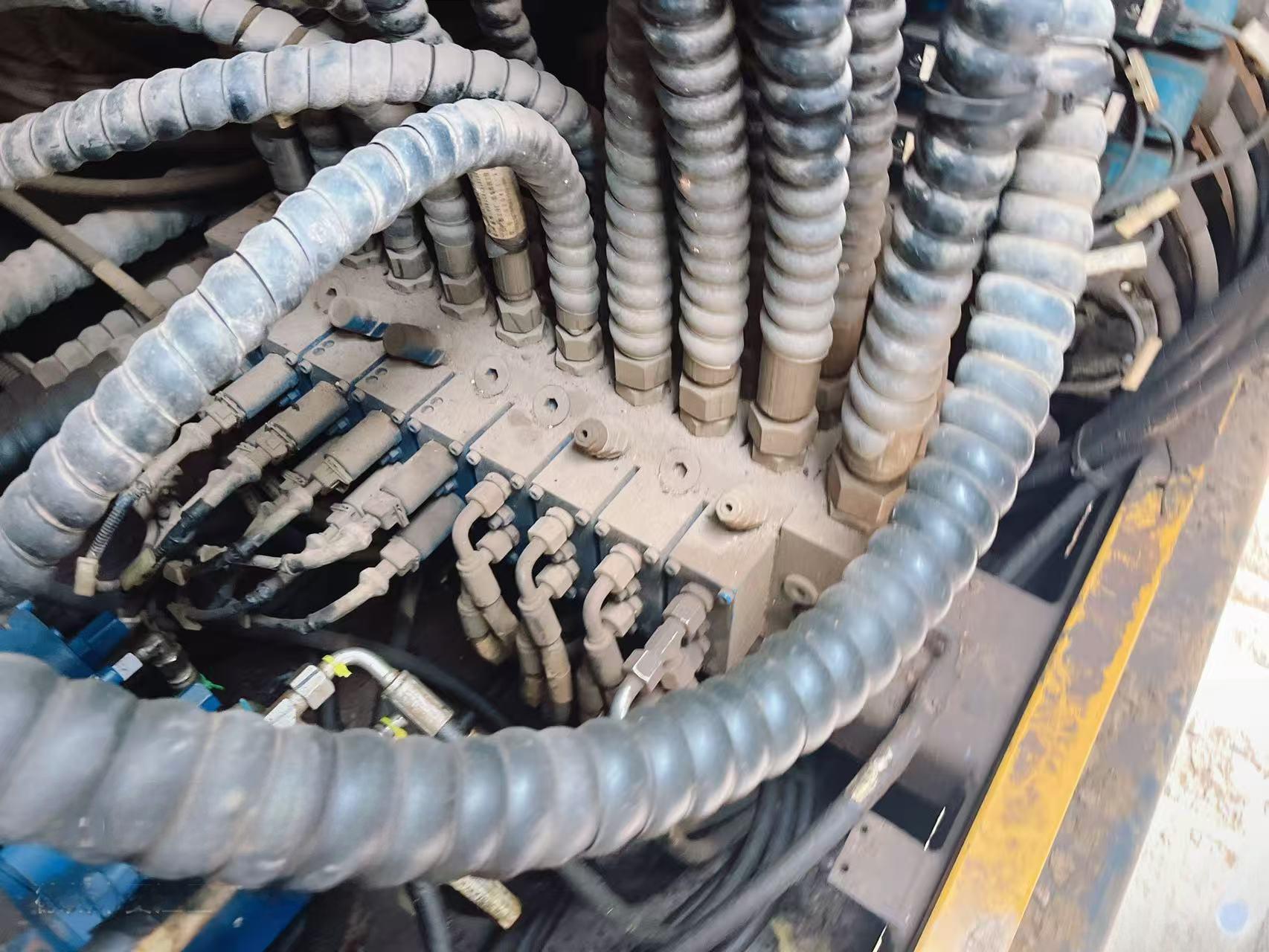

With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation.

Type		Unit	Parameter
Max. drilling diameter		mm	φ3000/ φ2800*
Max. drilling depth		m	108
Engine	Model	/	QSX15
Engine	Power	kW	373
Rotary drive	Max. output torque	kN.m	400
Rotary drive	Rotary speed	r/min	7-21
Crowd cylinder	Max. pull-down piston push	kN	300
	Max. pull-down piston pull	kN	400
	Max. pull-down piston stroke	m	6
Crowd winch	Max. pull-down piston push	kN	300
	Max. pull-down piston pull	kN	400
	Max. pull-down piston stroke	m	16
Main winch	Max. pulling force	kN	420
Main winch	Max. speed	m/min	65
Auxiliary winch	Max. pulling force	kN	100
Auxiliary winch	Max. speed	m/min	65
Mast inclination	Lateral/ forwards/ backwards	°	±5/5/15
Undercarrige	Max. traveling speed	km/h	1.3
	Max. grade ability	%	35
	Min. clearance	mm
	Track shoe width	mm	900
	Distance between tracks	mm	3700-5100
Hydraulic system	Working pressure	MPa	32
Overall weight	Max. traveling speed of the overall unit	t	132
Dimension	Working condition	mm	10530510028572
Dimension	Transportation condition	mm	1802537003500

OUR PRODUCTS

Used Hoisting Machinery

Used Excavator

Used Loader

Used Mining Machinery

FAQ

■ 1.What's the warranty policy for XCMG reconditioned machines?

The warranty policy does not cover the wearing parts and wearing parts. For engine, gearbox, hydraulic pump, distributor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.

■ 2.How about the quality of your machine?

The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professional institute.

■ 3.Are you the original manufacturer?

Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of construction machineries.

■ 4.Can you satisfy my special requirement?

As the manufacturer, XCMG will review the special requirement and recondition it as per request (if possible).

■ 5.What is acceptable payment terms?

Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight. If any other questions, please feel free to contact us.
