XCMG Used Hydraulic Drilling Machine XR360 Used Drill Rigs for Sale

XCMG Used Hydraulic Drilling Machine XR360 Used Drill Rigs for Sale

Name: XCMG Used Hydraulic Drilling Machine XR360 Used Drill Rigs for Sale
Brand: XCMG
SKU: 68622301
Price: 135987.00 USD
Availability: InStock

Get Latest Price

Model No.:68622301

Category:Rotary Drilling Rig

Price:135987

Original Price:135987

Images:7

Payment Type:T/T, L/C

Incoterm:FOB, CIF

Min. Order:1 unit

Transportation:Ocean

Port:Shanghai port, Qingdao port, Lianyungang Port

Product Description

Model No.:68622301

Category:Rotary Drilling Rig

Delivery:Shop Delivery

Delivery Amount:0

Brief:XCMG Used Hydraulic Drilling Machine XR360 Used Drill Rigs for Sale | Brand: XCMG | Model: XR360 | Transport: Ocean | Port: Shanghai port,Qingdao port,Lianyungang port

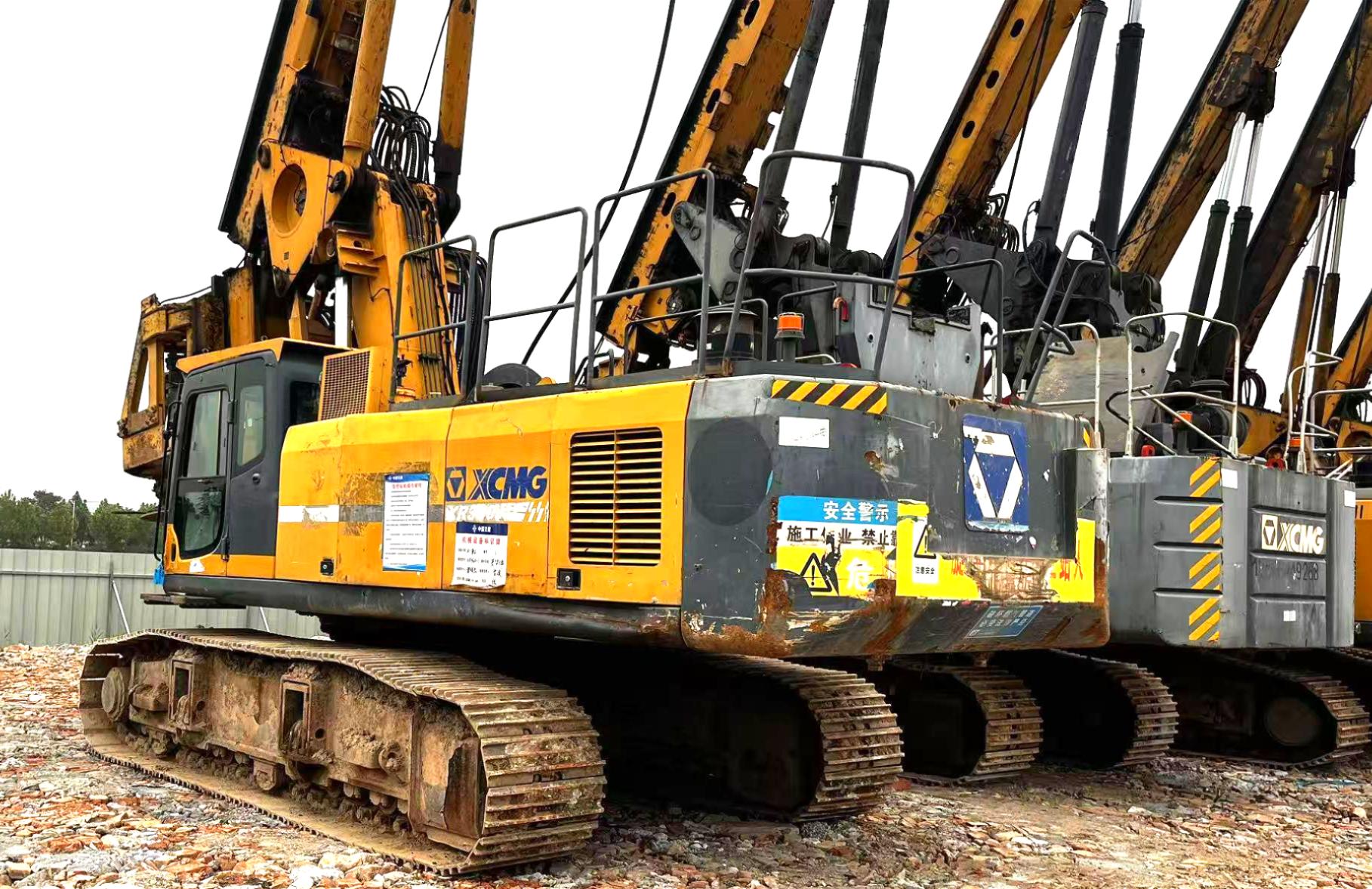

XCMG Used Hydraulic Drilling Machine XR360 Used Drill Rigs for Sale

The special hydraulic chassis for the rotating drill with extensible crawler is provided with the excellent stability and is convenient to transport. The imported turbo-supercharged engine (meeting EUIII standard) is powerful, and has sufficient power reserve, which can be operated in plateau. Its noise and emission meet the national standards. The constant power and the best output enable the complete machine to function at its best.

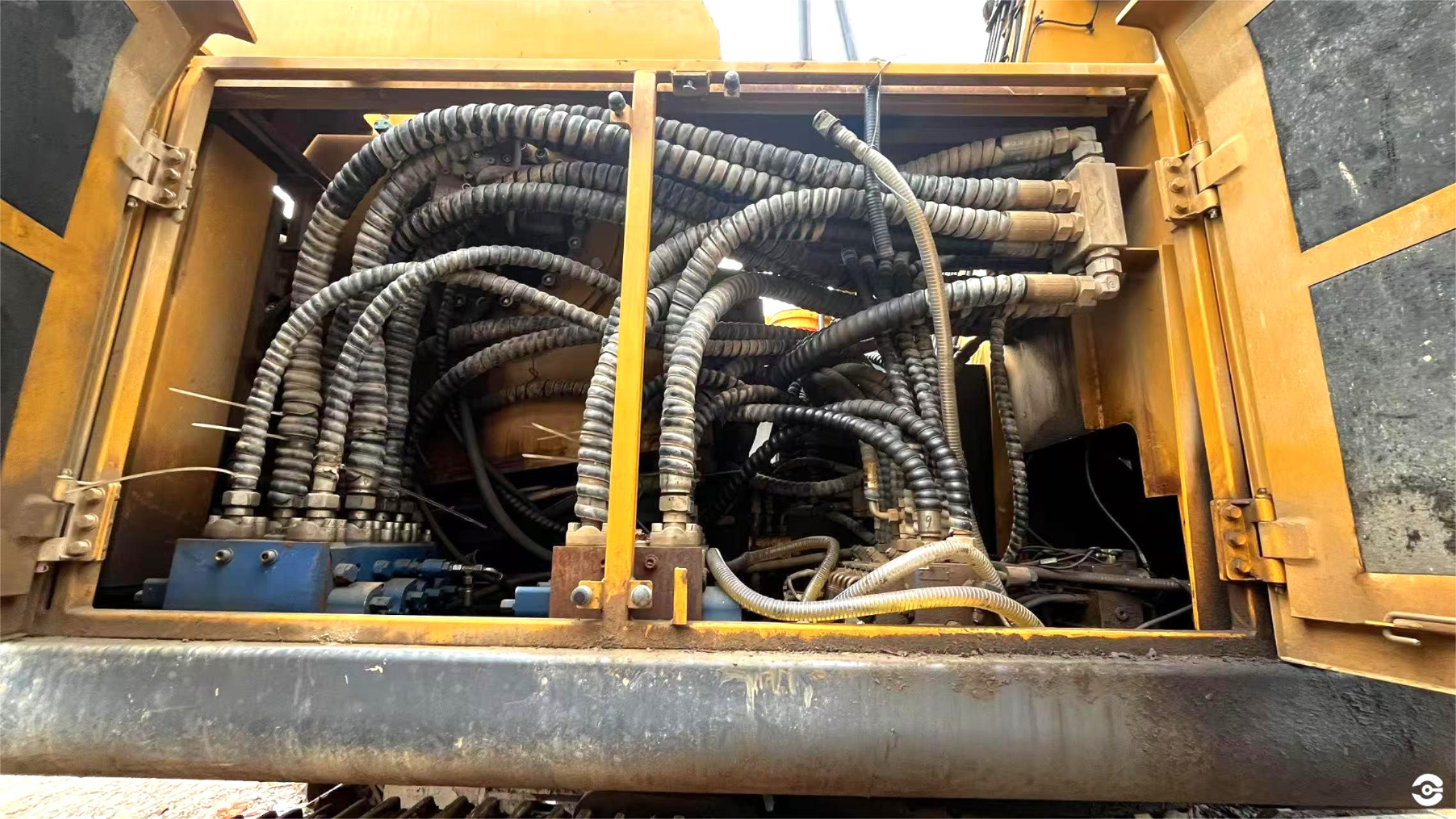

The main and auxiliary hydraulic systems are all adopt the technique of load sensor, which can increase the efficiency of hydraulic system and save energy. It uses heavy load hydraulic units to satisfy the all kinds operating status of drill.

Independent intellectual property rights of the intelligent control system, the application of CAN bus and the PLC control system, including the automatic and manual adjustment of the perpendicularity of the drill mast, the automatic display of the drilling depth, rotary automatic positioning control and the intellectual fault diagnosis control.

Three speed reducers are used in the power head. It can output high torque. The drill mast, which is made of the materials with high strength, is designed to box structure. The higher rigidity and anti-distortion can ensure the drilling accuracy effectively. The hinge provided with the bearing exempt from lubrication can turn neatly. The slag can be discharged at any point of 360° rotation.

Type		Unit	Parameter
Max. drilling diameter		m	2.5
Max. drilling depth		m	102
Engine	Model	/	QSM11-C400
Engine	Power	kW	298
Rotary drive	Max. output torque	kN.m	360
Rotary drive	Rotary speed	r/min	5-20
Crowd cylinder	Max. pull-down piston push	kN	240
	Max. pull-down piston pull	kN	320
	Max. pull-down piston stroke	m	6
Main winch	Max. pulling force	kN	320
Main winch	Max. speed	m/min	72
Auxiliary winch	Max. pulling force	kN	100
Auxiliary winch	Max. speed	m/min	65
Mast inclination	Lateral/ forwards/ backwards	°	±4/5/15
Undercarrige	Max. traveling speed	km/h	1.5
	Max. grade ability	%	35
	Min. clearance	mm	445
	Track shoe width	mm	800
	Distance between tracks	mm	3500-4800
Hydraulic system	Working pressure	MPa	32
Overall weight	Max. traveling speed of the overall unit	t	92
Dimension	Working condition	mm	11000480024586
Dimension	Transportation condition	mm	1738035003810

OUR PRODUCTS

Used Hoisting Machinery

Used Excavator

Used Loader

Used Mining Machinery

FAQ

■ 1.What's the warranty policy for XCMG reconditioned machines?

The warranty policy does not cover the wearing parts and wearing parts. For engine, gearbox, hydraulic pump, distributor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.

■ 2.How about the quality of your machine?

The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professional institute.

■ 3.Are you the original manufacturer?

Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of construction machineries.

■ 4.Can you satisfy my special requirement?

As the manufacturer, XCMG will review the special requirement and recondition it as per request (if possible).

■ 5.What is acceptable payment terms?

Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight. If any other questions, please feel free to contact us.
