2020 Used Crawler Piling Machinery XCMG XRS1050 price

2020 Used Crawler Piling Machinery XCMG XRS1050 price

Name: 2020 Used Crawler Piling Machinery XCMG XRS1050 price
Brand: XCMG
SKU: 63667368
Availability: InStock

Get Latest Price

Model No.:63667368

Category:Rotary Drilling Rig

Images:6

Payment Type:T/T, L/C

Incoterm:FOB, CIF

Min. Order:1 unit

Transportation:Ocean

Port:Shanghai port, Qingdao port, Lianyungang Port

Product Description

Model No.:63667368

Category:Rotary Drilling Rig

Delivery:Shop Delivery

Delivery Amount:0

Brief:2020 Used Crawler Piling Machinery XCMG XRS1050 price | Brand: XCMG | Model: XRS1050 | Transport: Ocean | Port: Shanghai port,Qingdao port,Lianyungang Port

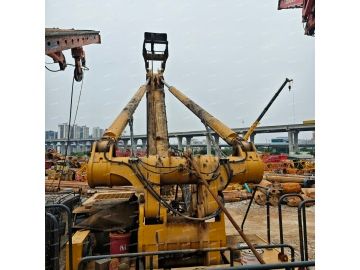

Used Crawler Piling Machinery XCMG XRS1050 price

The XCMG rotary drilling rig is engineered for high-performance pile foundation construction in various geological conditions. With a powerful engine, intelligent control system, and a heavy-duty crawler chassis, this equipment delivers exceptional drilling efficiency, safety, and reliability—ideal for construction, bridge building, and geotechnical engineering projects.

1. Flexible and Efficient Drilling Performance

Powerful Engine + High Displacement System: Delivers strong torque and fast main winch speed for efficient drilling in both soft and hard soil strata.

Pile Drilling Adaptability: Optimized for construction piles with superior soil loosening capability via up-and-down vibration.

Mast Base Design: Hidden support legs at the bottom of the mast assist in positioning and protect the borehole; easy access for chassis maintenance.

2. Safe and Stable Operation

Reinforced Telescopic Crawler Chassis: Provides strong structural integrity and enhanced stability across challenging terrain.

Double Boom Parallelogram Luffing Mechanism: Designed for high-load and multi-directional operation, ensuring safe and precise pile driving.

360° Safety Monitoring: Equipped with multi-angle HD cameras, audio-visual alarms, and real-time alerts to ensure job site safety.

3. Smart and User-Friendly Control System

Intelligent Fault Detection: Automatic self-diagnosis and alert system with real-time display of operating parameters.

Auto Drilling Function: Features electromagnetic joystick control and drill pipe bottoming protection, making operation easier and less labor-intensive.

Description		Unit	Parameter value
Max. drilling diameter		mm	2500
Max. drilling depth		m	105
Working condition (L × W × H)		mm	10265×4800×27520
Transport condition (L × W × H)		mm	17615×3500×3535
Weight of overall unit (standard configuration, excluding drilling tool)		t	114
Engine	Model		QSM11-C400
Engine	Rated power/speed	kW	298
Rotary drive	Max. torque	kN.m	390
Rotary drive	Rotational speed	r/min	7~18
Pull-Down Cylinder	Max. pull- down piston push	kN	240
	Max. pull- down piston pull	kN	250
	Max. pull- down piston stroke	m	6
Main Winch	Max. pulling force	kN	400
Main Winch	Max. line speed	m/min	60
Auxiliary Winch	Max. Pulling force	kN	100
Auxiliary Winch	Max. line speed	m/min	65
Undercarrige	Max. traveling speed	km/h	1.2
	Max. grade ability	%	35
	Min. Clearance	mm	445
	Track shoe width	mm	800
	Distance between tracks	mm	3500~4800
Hydraulic System	Working pressure	Mpa	35

OUR PRODUCTS

Used Hoisting Machinery

Used Excavator

Used Loader

Used Mining Machinery

FAQ

■ 1.What's the warranty policy for XCMG reconditioned machines?

The warranty policy does not cover the wearing parts and wearing parts. For engine, gearbox, hydraulic pump, distributor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.

■ 2.How about the quality of your machine?

The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professional institute.

■ 3.Are you the original manufacturer?

Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of construction machineries.

■ 4.Can you satisfy my special requirement?

As the manufacturer, XCMG will review the special requirement and recondition it as per request (if possible).

■ 5.What is acceptable payment terms?

Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight. If any other questions, please feel free to contact us.
