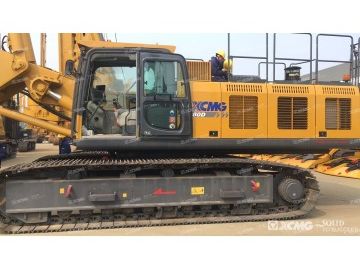

2014 XCMG second hand Rotary Drilling Rig XR280D for sale

2014 XCMG second hand Rotary Drilling Rig XR280D for sale

Name: 2014 XCMG second hand Rotary Drilling Rig XR280D for sale
Brand: XCMG
SKU: 63459230
Availability: InStock

Get Latest Price

Model No.:63459230

Category:Rotary Drilling Rig

Images:8

Payment Type:T/T, L/C

Incoterm:FOB, CIF

Min. Order:1 unit

Transportation:Ocean

Port:Shanghai port, Qingdao port, Lianyungang Port

Product Description

Model No.:63459230

Category:Rotary Drilling Rig

Delivery:Shop Delivery

Delivery Amount:0

Brief:2014 XCMG second hand Rotary Drilling Rig XR280D for sale | Brand: XCMG | Model: XR280D | Transport: Ocean | Port: Shanghai port,Qingdao port,Lianyungang Port

XCMG second hand Rotary Drilling Rig XR280D for sale

XCMG XR280D Rotary Drilling Rig widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings.

XR series Rotary Drilling Rig are suitable construction machinery for the construction of the hole, mainly suitable for sand, cohesive soil, silty soil and other soil construction. The drilling rigs generally use hydraulic crawler telescopic chassis, self-landing folding mast, telescopic drill pipe, with vertical degree of automatic detection adjustment and hole digital display, etc.

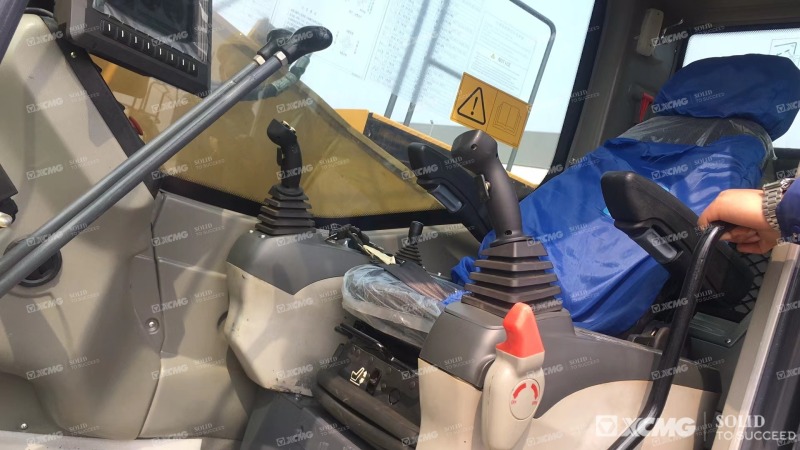

Whole machine operation is generally used hydraulic pilot control and load sensing, easy and comfortable to operate. The main and vice winchs can meet different requests of construction sites.

This type of drilling rig equips with different drilling tools not only for dry (short spiral), wet (rotary bucket) and rock (core drill) into the hole operation, but also for a long helix drill, underground wall grab, vibration pile hammer, etc.

Achieving a variety of functions, mainly for municipal construction, highway bridges, industrial and civil construction, underground wall, water conservancy, anti-seepage slope and other basic construction works.

Advantages and highlights:

1.Offer Test Report of Professional Institute.

2.Details Of Maintenance And Repair Items Included.

3.Price Concessions.

4.Official Factory Sourcing.

5.Reconditioning Directly From XCMG.

6.Vehicle Condition of Perfection.

Drilling rig dimension in transport condition (L × W × H)		mm	17380×3500×3540
Weight of overall unit (standard configuration, excluding drilling tool)		t	84

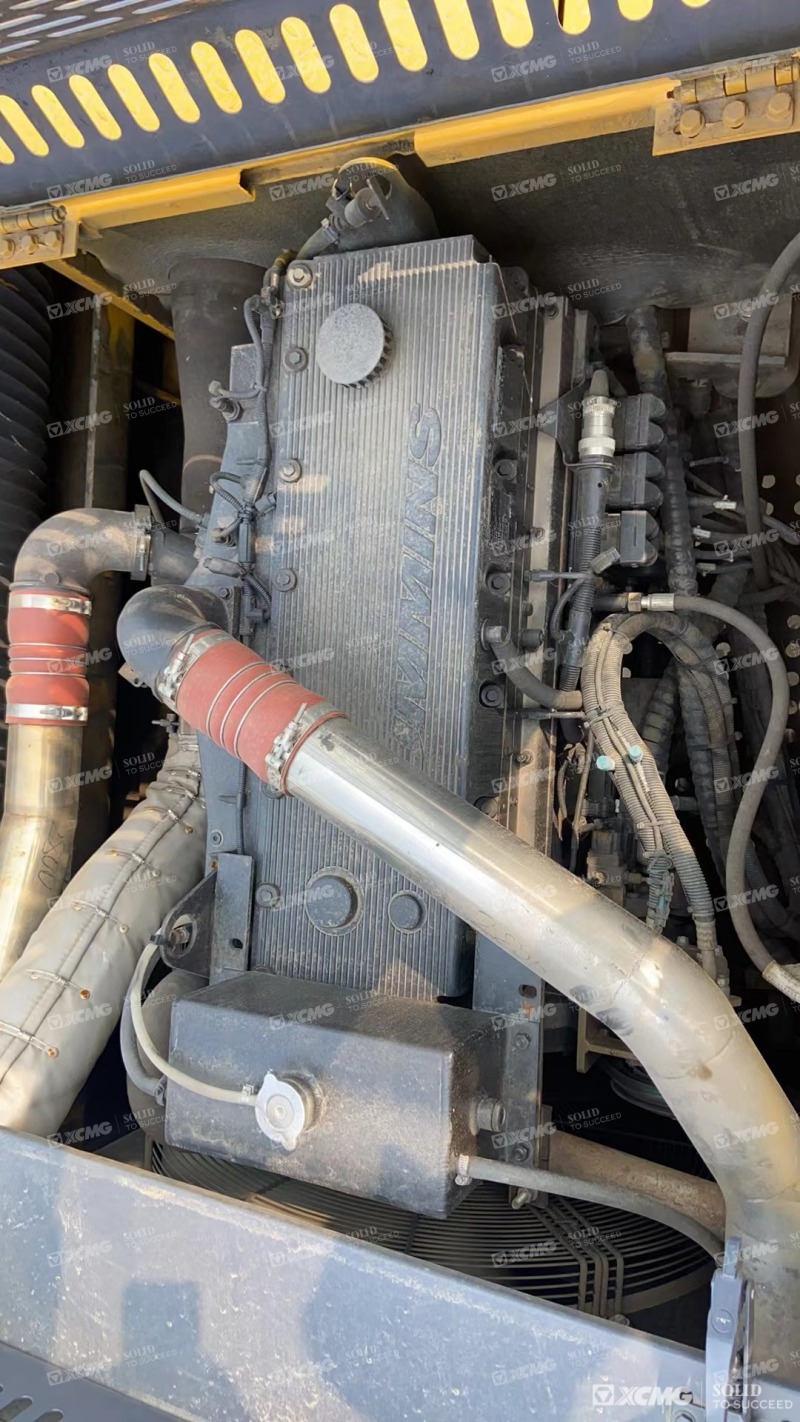

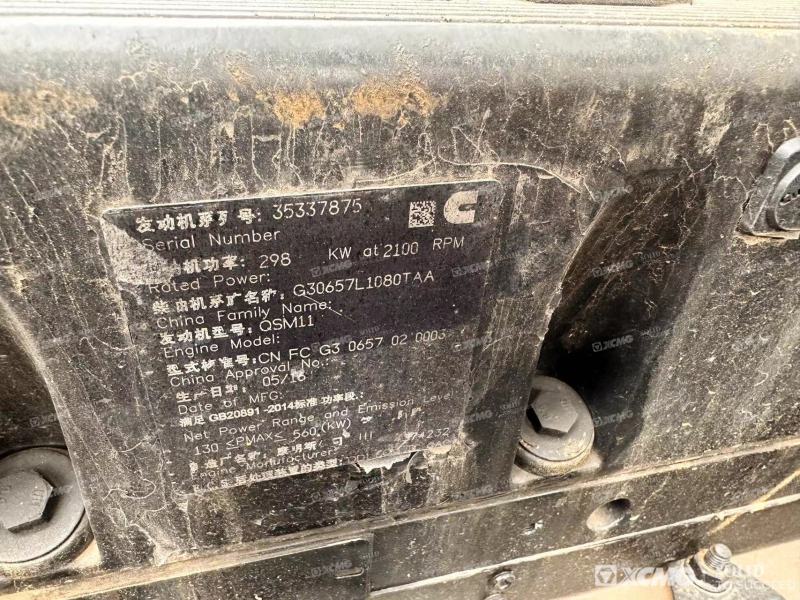

Engine	Model		QSM11-C400
Engine	Rated power/speed	kw	298/(2200r/min)
Rotary drive	Max. torque	kn.m	280
Rotary drive	Rotational speed	r/min	6~22
Crowd cylinder	Max. Pushing force	kn	210
	Max. Pulling force	kn	220
	Max.stroke	mm	6000
Main winch	Max.pulling force	kn	260
Main winch	Max. single-rope speed	m/min	60
Auxiliary winch	Max.pulling force	kn	100
Auxiliary winch	Max. single-rope speed	m/min	65
Drilling mast	Left/right inclination of mast	°	4/4
Drilling mast	Front/back inclination of mast	°	5/15
Rotary table slewing angle		°	360
Traveling	Max. traveling speed of the overall unit	km/h	1.5
Traveling	Max. climbable gradient of the overall unit	%	35
Crawler	Width of crawler plate	mm	800
	External width of crawler (min.-max.)	mm	3500~4800
	Center distance between two longitudinal wheels of crawler	mm	5175
	Average ground pressure	kpa	102

OUR PRODUCTS

Used Hoisting Machinery

Used Excavator

Used Loader

Used Mining Machinery

FAQ

■ 1.What's the warranty policy for XCMG reconditioned machines?

The warranty policy does not cover the wearing parts and wearing parts. For engine, gearbox, hydraulic pump, distributor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.

■ 2.How about the quality of your machine?

The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professional institute.

■ 3.Are you the original manufacturer?

Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of construction machineries.

■ 4.Can you satisfy my special requirement?

As the manufacturer, XCMG will review the special requirement and recondition it as per request (if possible).

■ 5.What is acceptable payment terms?

Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight. If any other questions, please feel free to contact us.
