XCMG XR400E Used Rotary Drilling Rig for Sale

XCMG XR400E Used Rotary Drilling Rig for Sale

Name: XCMG XR400E Used Rotary Drilling Rig for Sale
Brand: XCMG
SKU: 68740752
Price: 144000.00 USD
Availability: InStock

获取最新报价

Model No.:68740752

Category:Rotary Drilling Rig

Price:144000

Original Price:144000

Images:7

付款方式:T/T, L/C

贸易术语:FOB, CIF

最小起订量:1 unit

运输方式:Ocean

港口:Shanghai port, Qingdao port, Lianyungang Port

商品详情

Model No.:68740752

Category:Rotary Drilling Rig

Delivery:Shop Delivery

Delivery Amount:0

Brief:XCMG XR400E Used Rotary Drilling Rig for Sale | Brand: XCMG | Model: XR400E | Transport: Ocean | Port: Shanghai port,Qingdao port,Lianyungang port

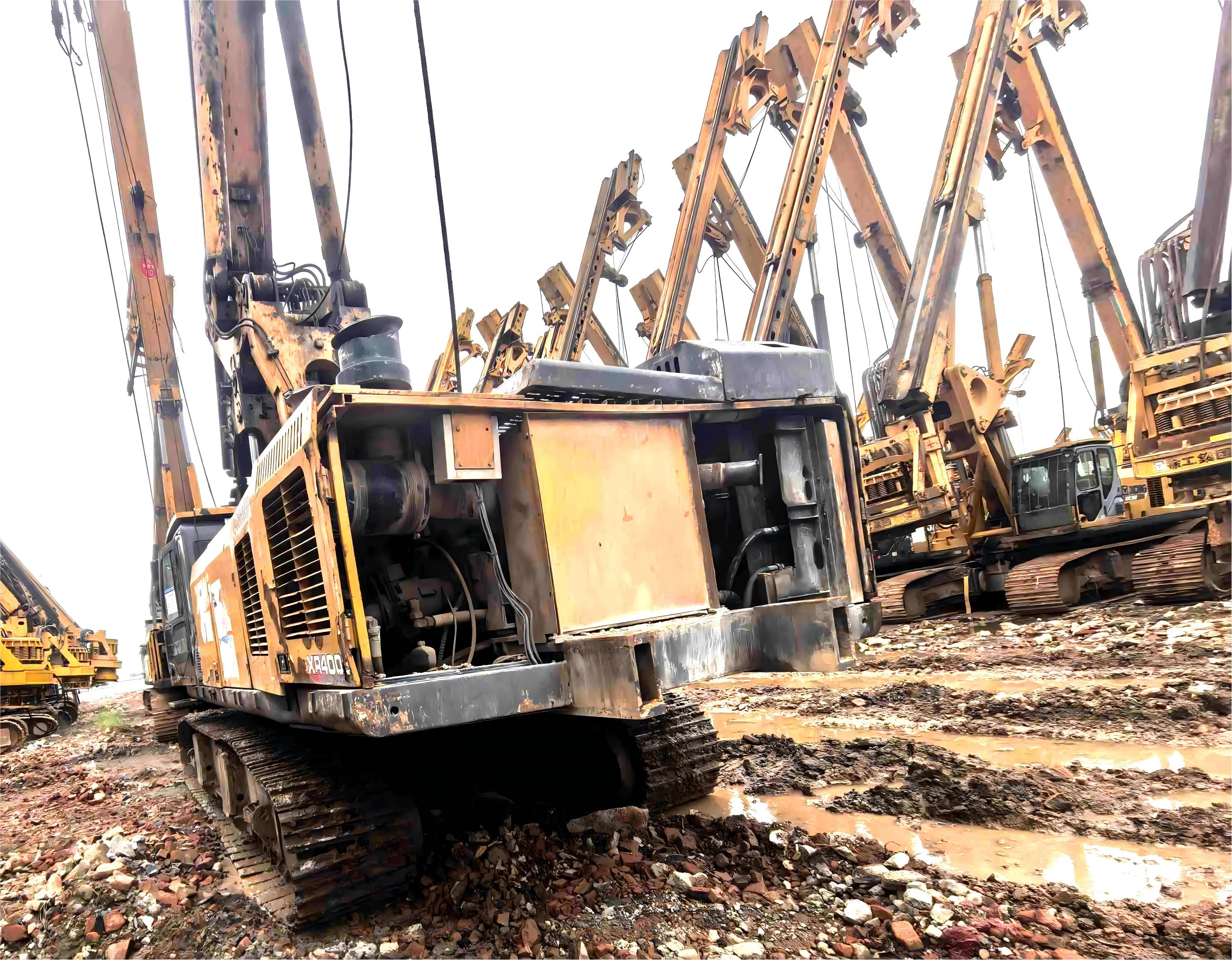

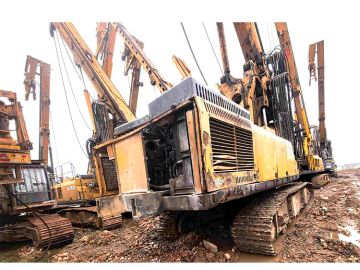

XCMG XR400E Used Rotary Drilling Rig for Sale

It adopts double-boom luffer and H-style. Dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience.

According to specific working conditions, the users can select a corresponding gear of the engine, getting the drilling rig working as three engines.

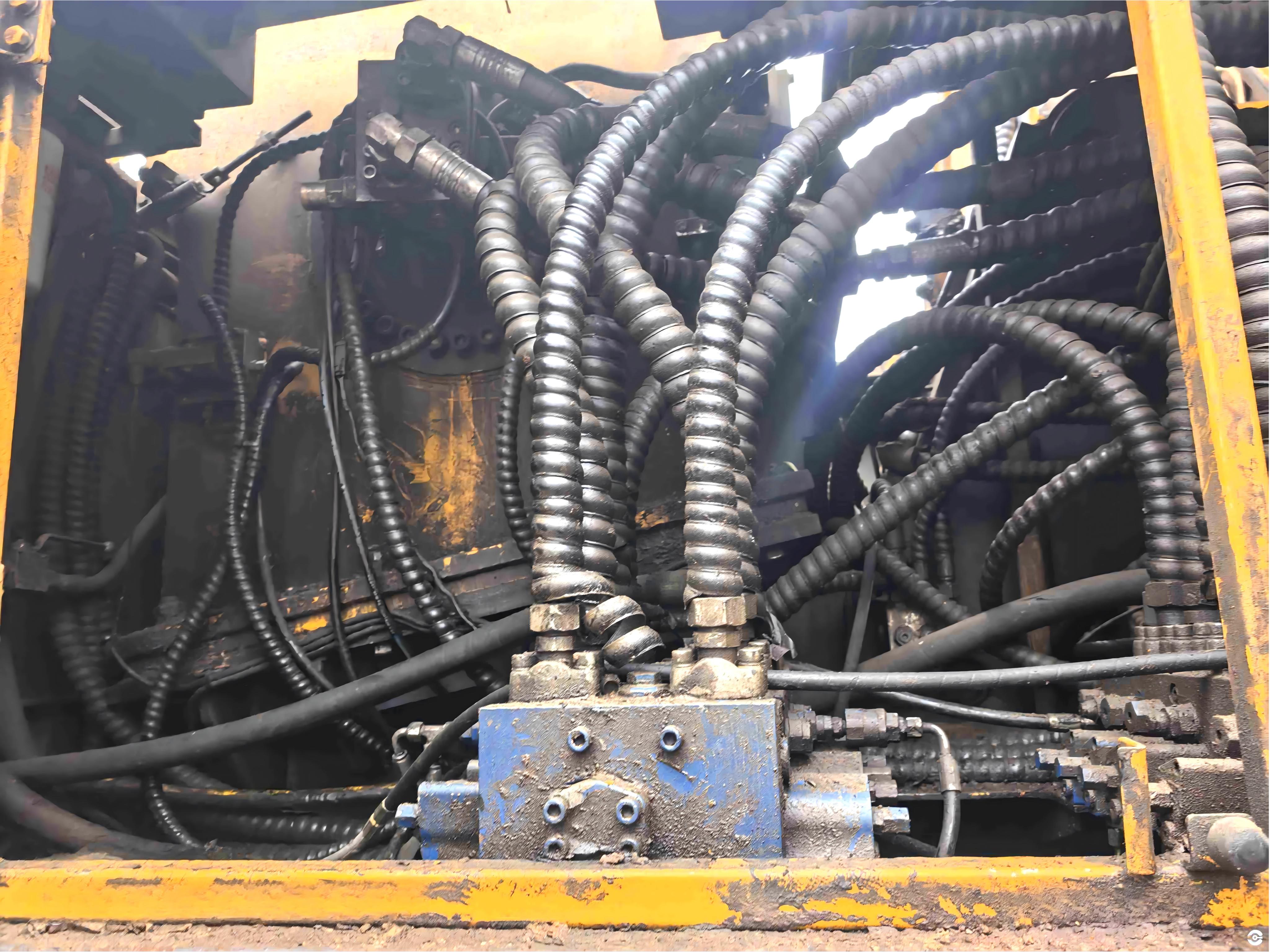

The main hydraulic system adopts the negative flow control, and adopts the main power control and limit power control together which can increase the system efficiency and make the most of the engine power. It adopt three-in-one cooling system which is tightly packed and has a high-efficiency in cooling.

It adopts the single-rope for main winch to figure out the wear of the steel rope, and extend the life-span.

The rotary drive can switch from Normal Mode, Rock Mode and Energy-Saving Mode, the user can select a corresponding mode of the rotary drive according to the specific working conditions, which can greatly improve the working efficiency and lower the fuel consumption.

It is equipped with a centralized lubrication system as standard configuration to provide more convenient maintenance and make the machine a good reliability.

Description		Unit	XR400E
Max. drilling diameter		mm	2800
Max. drilling depth		m	103
Allowable luffing scope (from center of drill rod to slewing center)		mm	4700~5200
Drilling rig dimension in working condition (L × W × H)		mm	10995×4900×26640
Drilling rig dimension in transport condition (L × W × H)		mm	20755×3500×3910
Weight of overall unit (standard configuration, excluding drilling tool)		t	113
Engine	Model		CUMMINS QSX15-C500
Engine	Rated power/speed	kW	373/(2100r/min)
Max. working pressure of hydraulic system		Mpa	35
Rotary drive	Max. torque	kN•m	400
Rotary drive	Rotational speed	r/min	7~25
Crowd cylinder	Max. Pushing force	kN	300
	Max. Pulling force	kN	400
	Max.stroke	mm	6000
Crowd winch	Max. Pushing force	kN	400
	Max. Pulling force	kN	400
	Max.stroke	mm	18000
Main winch	Max.pulling force	kN	360
	Max. single-rope speed	m/min	60
	Diameter of the steel wire rope	mm	36
Rotary table slewing angle		°	360
Crawler	Width of crawler plate	mm	800
	External width of crawler (min.-max.)	mm	3500~4900
	Center distance between two longitudinal wheels of crawler	mm	5600
	Average ground pressure	kPa	120

我们的产品

Used Hoisting Machinery

Used Excavator

Used Loader

Used Mining Machinery

FAQ

■ 1.What's the warranty policy for XCMG reconditioned machines?

The warranty policy does not cover the wearing parts and wearing parts. For engine, gearbox, hydraulic pump, distributor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.

■ 2.How about the quality of your machine?

The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professional institute.

■ 3.Are you the original manufacturer?

Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of construction machineries.

■ 4.Can you satisfy my special requirement?

As the manufacturer, XCMG will review the special requirement and recondition it as per request (if possible).

■ 5.What is acceptable payment terms?

Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight. If any other questions, please feel free to contact us.
