XCMG XR200E Used Hydraulic Rotary Rig for Sale

XCMG XR200E Used Hydraulic Rotary Rig for Sale

Name: XCMG XR200E Used Hydraulic Rotary Rig for Sale
Brand: XCMG
SKU: 68740257
Price: 118200.00 USD
Availability: InStock

Obtener último precio

Model No.:68740257

Category:Rotary Drilling Rig

Price:118200

Original Price:118200

Images:7

Tipo de pago:T/T, L/C

Incoterm:FOB, CIF

Pedido mínimo:1 unit

Transporte:Ocean

Puerto:Shanghai port, Qingdao port, Lianyungang Port

Descripción del producto

Model No.:68740257

Category:Rotary Drilling Rig

Delivery:Shop Delivery

Delivery Amount:0

Brief:XCMG XR200E Used Hydraulic Rotary Rig for Sale | Brand: XCMG | Model: XR200E | Transport: Ocean | Port: Shanghai port,Qingdao port,Lianyungang port

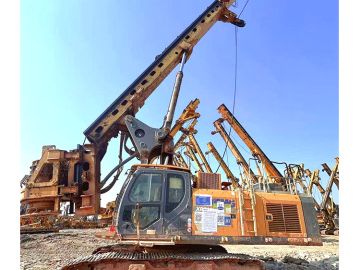

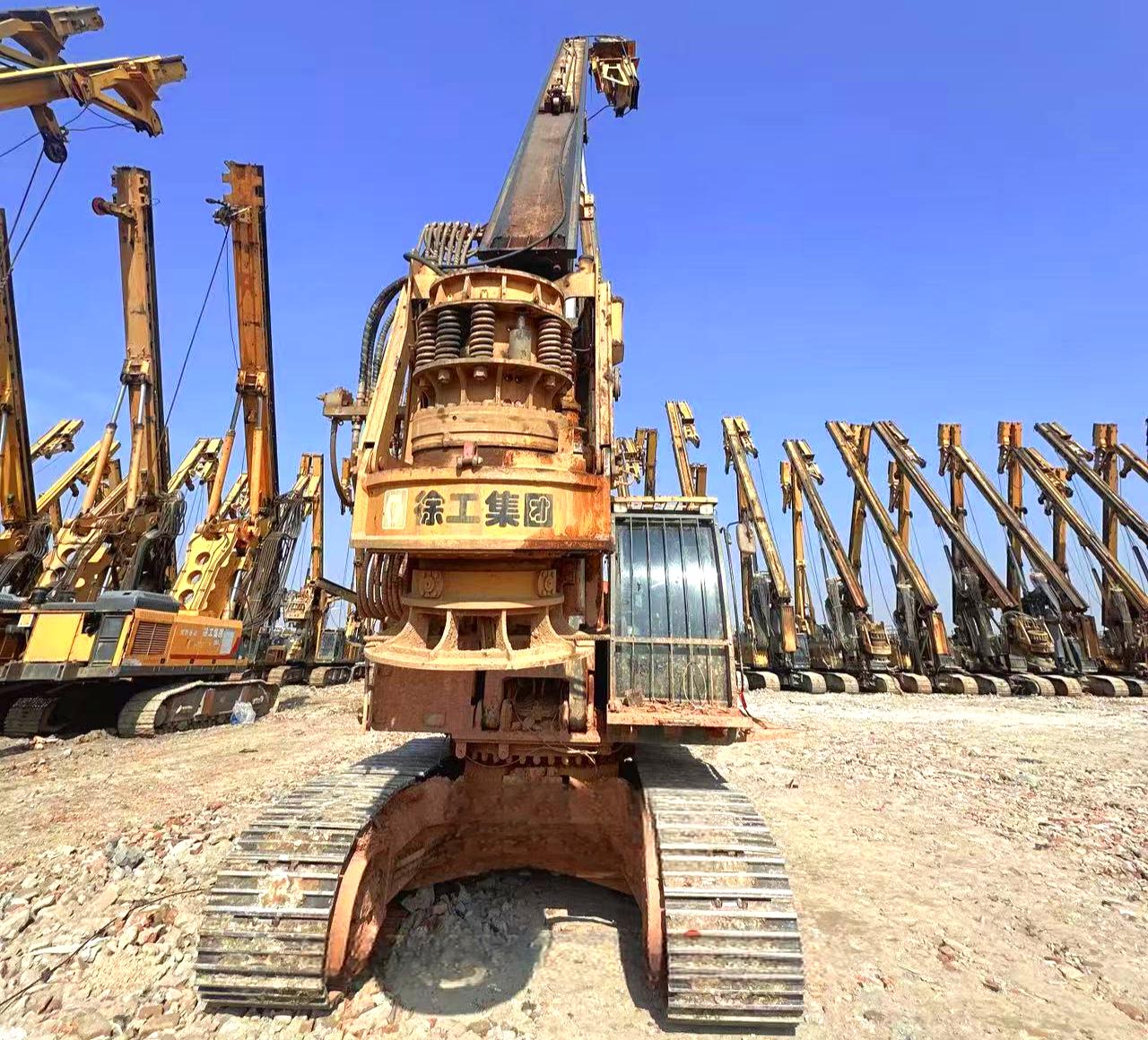

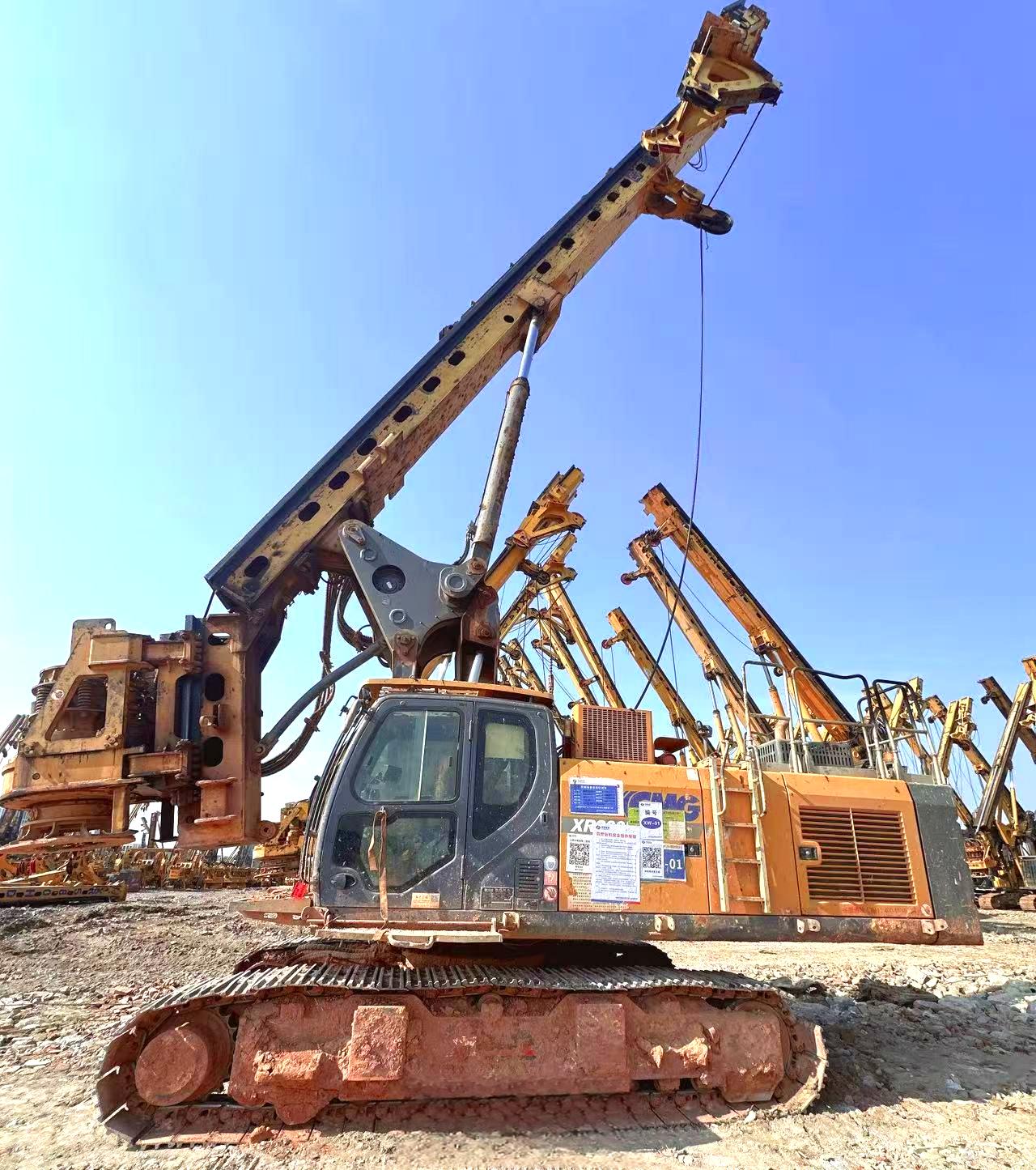

XCMG XR200E Used Hydraulic Rotary Rig for Sale

As a multi-functional machine, XR200E can realize the quick switching of functions such as crowd cylinder, crowd winch, to meet more different construction needs. The rotary drive performance is increased by 11%, main winch by 18%, travelling drive by 20%, heat dissipation capacity by 1.4 times, and the working efficiency is much higher. The main and auxiliary winches both adopt single-row rope technology, the service life of wire rope is 2~4 times longer than that of multi-layer rope, which makes the cost lower.

The parallelogram luffing mechanism with double swing arm has a large support angle and a 16% increase in support range, which makes the operation more stable. The hydraulic system adopts negative flow control technology which has a fast response and good handling performance. The rotary drive can be equipped with high-speed spin-off function and the rotation speed can reach up to 80r/min, the construction efficiency is higher with a spiral drilling bucket.

Item		Unit	Parameter
Max. drilling diameter		m	1.8
Max. drilling depth		m	65
Engine	Model	/	6HK1X
Engine	Power	kW	212
Rotary drive	Max. output torque	kN.m	210
Rotary drive	Rotary speed	r/min	7-30
Crowd cylinder	Max. pull-down piston push	kN	210
	Max. pull-down piston pull	kN	210
	Max. pull-down piston stroke	m	4.8
Undercarrige	Max. traveling speed	km/h	1.9
	Max. grade ability	%	40
	Min. clearance	mm	379
	Track shoe width	mm	700
	Distance between tracks	mm	2960-4200
Hydraulic system	Working pressure	MPa	35
Overall weight	Max. traveling speed of the overall unit	t	70
Dimension	Working condition	mm	8800420021615
Dimension	Transportation condition	mm	1657130003731

Productos recomendados

NUESTROS PRODUCTOS

Used Hoisting Machinery

Used Excavator

Used Loader

Used Mining Machinery

FAQ

■ 1.What's the warranty policy for XCMG reconditioned machines?

The warranty policy does not cover the wearing parts and wearing parts. For engine, gearbox, hydraulic pump, distributor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.

■ 2.How about the quality of your machine?

The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professional institute.

■ 3.Are you the original manufacturer?

Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of construction machineries.

■ 4.Can you satisfy my special requirement?

As the manufacturer, XCMG will review the special requirement and recondition it as per request (if possible).

■ 5.What is acceptable payment terms?

Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight. If any other questions, please feel free to contact us.
