2022 XCMG Used 26 Ton Static Three Drum Road Roller 3Y263J

2022 XCMG Used 26 Ton Static Three Drum Road Roller 3Y263J

Name: 2022 XCMG Used 26 Ton Static Three Drum Road Roller 3Y263J
Brand: XCMG
SKU: 63427346
Availability: InStock

Get Latest Price

Model No.:63427346

Category:Double Drum roller

Images:6

Payment Type:T/T, L/C

Incoterm:FOB, CIF

Min. Order:1 unit

Transportation:Ocean

Port:Shanghai port, Qingdao port, Lianyungang Port

Product Description

Model No.:63427346

Category:Double Drum roller

Delivery:Shop Delivery

Delivery Amount:0

Brief:2022 XCMG Used 26 Ton Static Three Drum Road Roller 3Y263J | Brand: XCMG | Model: 3Y263J | Transport: Ocean | Port: Shanghai port,Qingdao port,Lianyungang Port

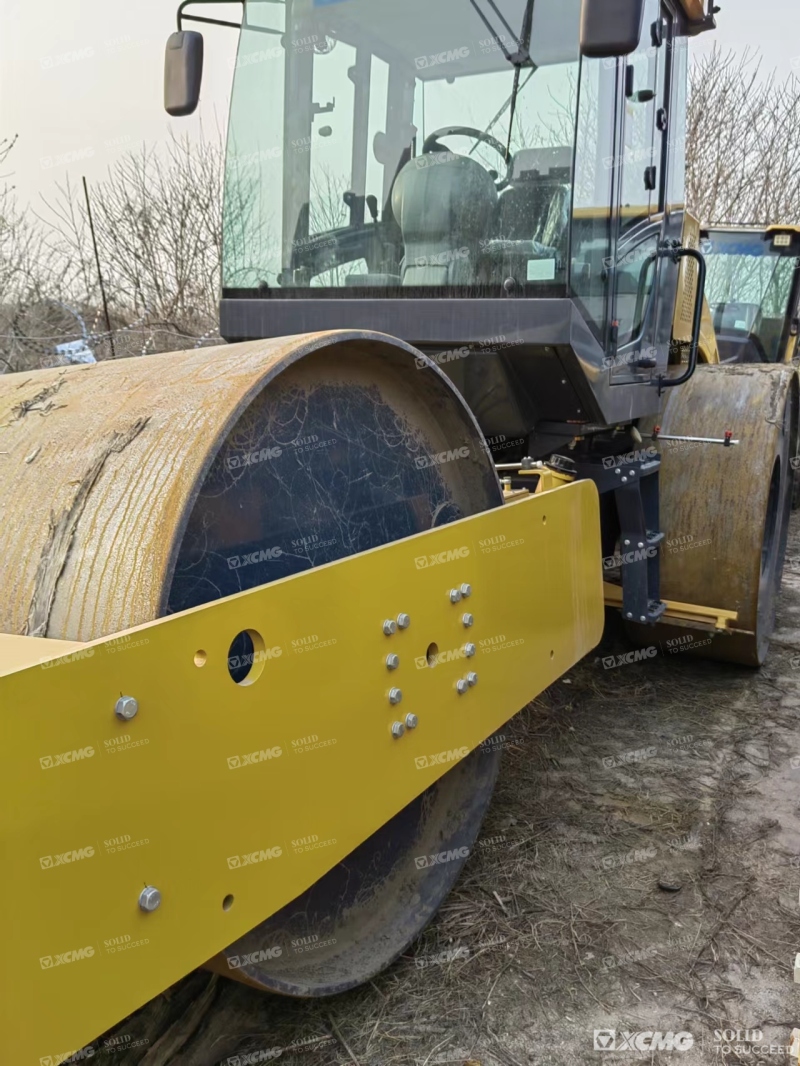

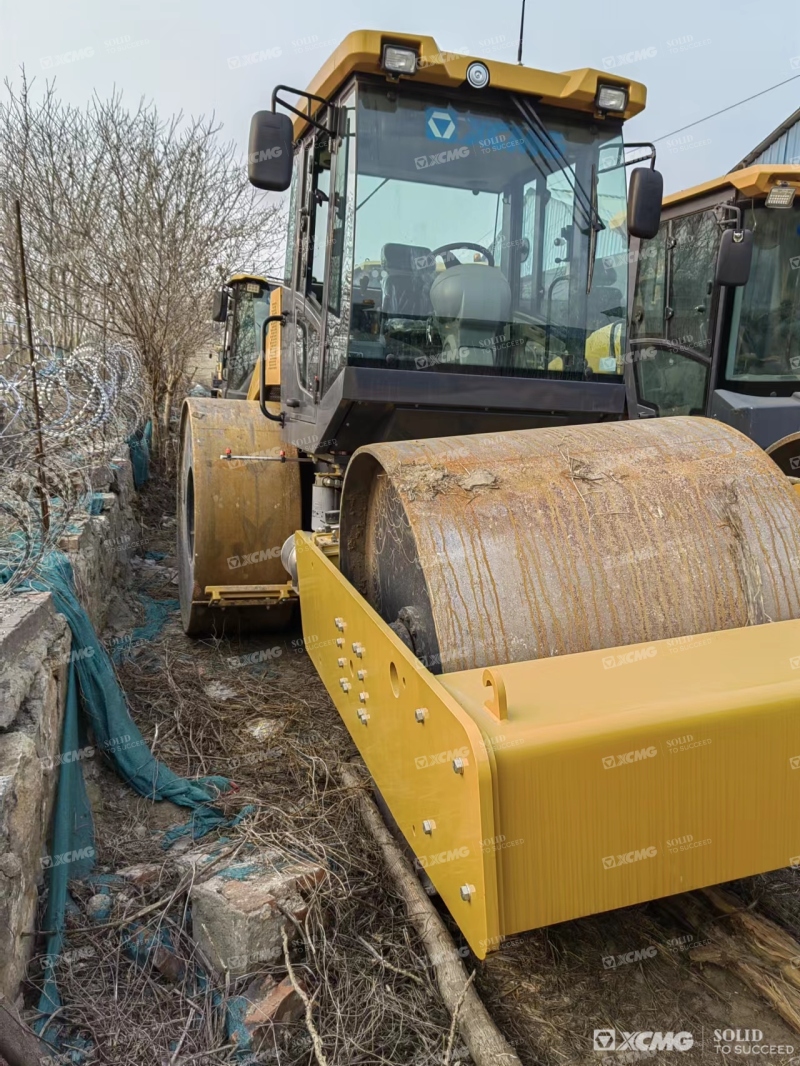

XCMG used 26 ton static three drum road roller 3Y263J

The 3Y263J articulated three-wheeled road roller is a high-performance, heavy-duty compactor designed for superior compaction of gravel, crushed stone, asphalt concrete, building materials, and loose base layers. With a high linear load and rugged construction, it is ideal for large-scale infrastructure projects including railways, highways, airports, dams, and industrial construction sites.

Key Performance Features

Powerful & Efficient Engine

Equipped with the SC4H115.4G2B turbocharged water-cooled diesel engine

Rated power: 86 kW @ 1800 rpm

Complies with China Stage II emission standards

Offers:

Low fuel consumption

Low noise

High torque output

Stable transmission

Long service life

Outstanding energy efficiency

Smooth and Reliable Transmission

Features a 5-speed gearbox with synchronizer for seamless power delivery

Integrated with a heavy-duty drive axle for optimal traction and durability

Easy operation with minimal maintenance needs

Advanced Articulated Frame Design

Front and rear frames connected via a central cross shaft

Delivers excellent maneuverability:

±33° rotation

±11° vertical swing

Wheelbase: 3136 mm, ensuring superior stability and flexibility on uneven terrain

Adjustable Compaction Pressure

Patented front and rear drum structure

Users can add wet sand through the designated sand ports to adjust the static linear pressure of the wheels based on job site requirements

Item		Unit	3Y223J
Operating mass		kg	19000
Maximum operating mass		kg	22000
Quality ratio of driving wheel		%	70
Line load of driving wheel (without load)		N/cm	1002
Line load of driving wheel (with load)		N/cm	1160
Compaction width		mm	2420
Front drum diameter		mm	1600
Rear drum diameter		mm	1700
Overlapping of front and rear drum		mm	100
Theoretical gradeability		%	20
Minimum turning radius		mm	6500
Working speed	Gear I	km/h	2.8
	Gear II	km/h	5.5
	Gear II	km/h	11.6
	Gear R I	km/h	2.8
	Gear R II	km/h	5.5
Engine type		-	SC4H125.2G3
Rated power/Speed		kW/rpm	92/1800

OUR PRODUCTS

Used Hoisting Machinery

Used Excavator

Used Loader

Used Mining Machinery

FAQ

■ 1.What's the warranty policy for XCMG reconditioned machines?

The warranty policy does not cover the wearing parts and wearing parts. For engine, gearbox, hydraulic pump, distributor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.

■ 2.How about the quality of your machine?

The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professional institute.

■ 3.Are you the original manufacturer?

Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of construction machineries.

■ 4.Can you satisfy my special requirement?

As the manufacturer, XCMG will review the special requirement and recondition it as per request (if possible).

■ 5.What is acceptable payment terms?

Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight. If any other questions, please feel free to contact us.
