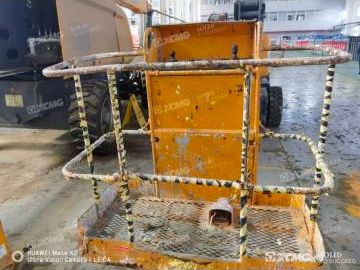

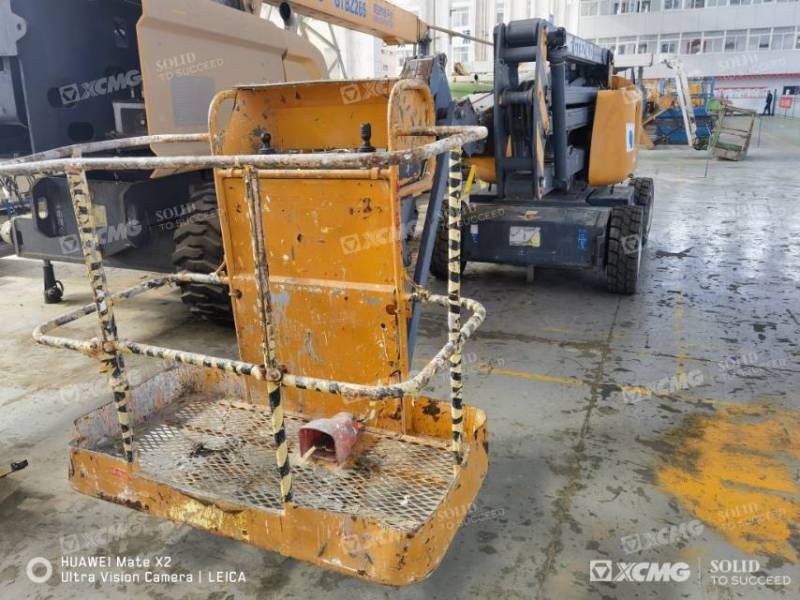

XCMG GTBZ14J Second Hand Articulated Boom Lift for Sale

XCMG GTBZ14J Second Hand Articulated Boom Lift for Sale

Name: XCMG GTBZ14J Second Hand Articulated Boom Lift for Sale
Brand: XCMG
SKU: 63445027
Availability: InStock

Get Latest Price

Model No.:63445027

Category:Articulated Boom Lift

Images:6

Payment Type:T/T, L/C

Incoterm:FOB, CIF

Min. Order:1 unit

Transportation:Ocean

Port:Shanghai port, Qingdao port, Lianyungang Port

Product Description

Model No.:63445027

Category:Articulated Boom Lift

Delivery:Shop Delivery

Delivery Amount:0

Brief:XCMG GTBZ14J Second Hand Articulated Boom Lift for Sale | Brand: XCMG | Model: GTBZ14J | Transport: Ocean | Port: Shanghai port,Qingdao port,Lianyungang Port

XCMG GTBZ14J Second Hand Articulated Boom Lift for Sale

14m-level articulated boom aerial work platform aiming at meeting customer demand has intelligent and perfect control system, adopts humanized layout and lubrication-free design, is easy for use and maintenance and provides comprehensive safety protection and abundant configuration options.

Maximum working range 18.9m to reach operation area at different directions

This vehicle is equipped with No. 1, No. 2 booms and a full section of articulated boom, available to implement all-directional aerial work through the elevating, telescopic and slewing control, and thus making the machine more flexible.

Flexible 4WD multi-mode steering system and the leading grade ability.

The customized valve control system and all accurately controlled motions effectively improve the motion smoothness

The flow anti-saturation design is applied to provide efficient and stable composite motion experiences.

Initial power self-matching system could save the energy, dropping the comprehensive fuel consumption under each work condition by 30% or higher.

Item	Parameter
Overall Length	6690mm
Overall Width	2260mm
Overall Height	2130mm
Wheel Base	2100mm
Maximum Working Height	15.75m
Maximum Platform Height	14.05m
Maximum Working Range	8.22m
Maximum Load Capacity	230kg
1st Boom luffing Range	0~+60°
2nd Boom luffing Range	-8~+75°
Crank Arm Luffing Range	-60~+80°
Rotation Angle of Rotating Platform	355°
Platform Size	18307601150mm
Platform turning angle	180°
Total Weight	6900kg
Maximum Travel Speed	6.1km/h
Minimum Turning Radius	4.5m
Minimum Ground Clearance	250mm
Maximum Grade Ability	45%
Tire Specification	315/55D20
Rated Power of Engine	38/(3000)kW/(r/min)
